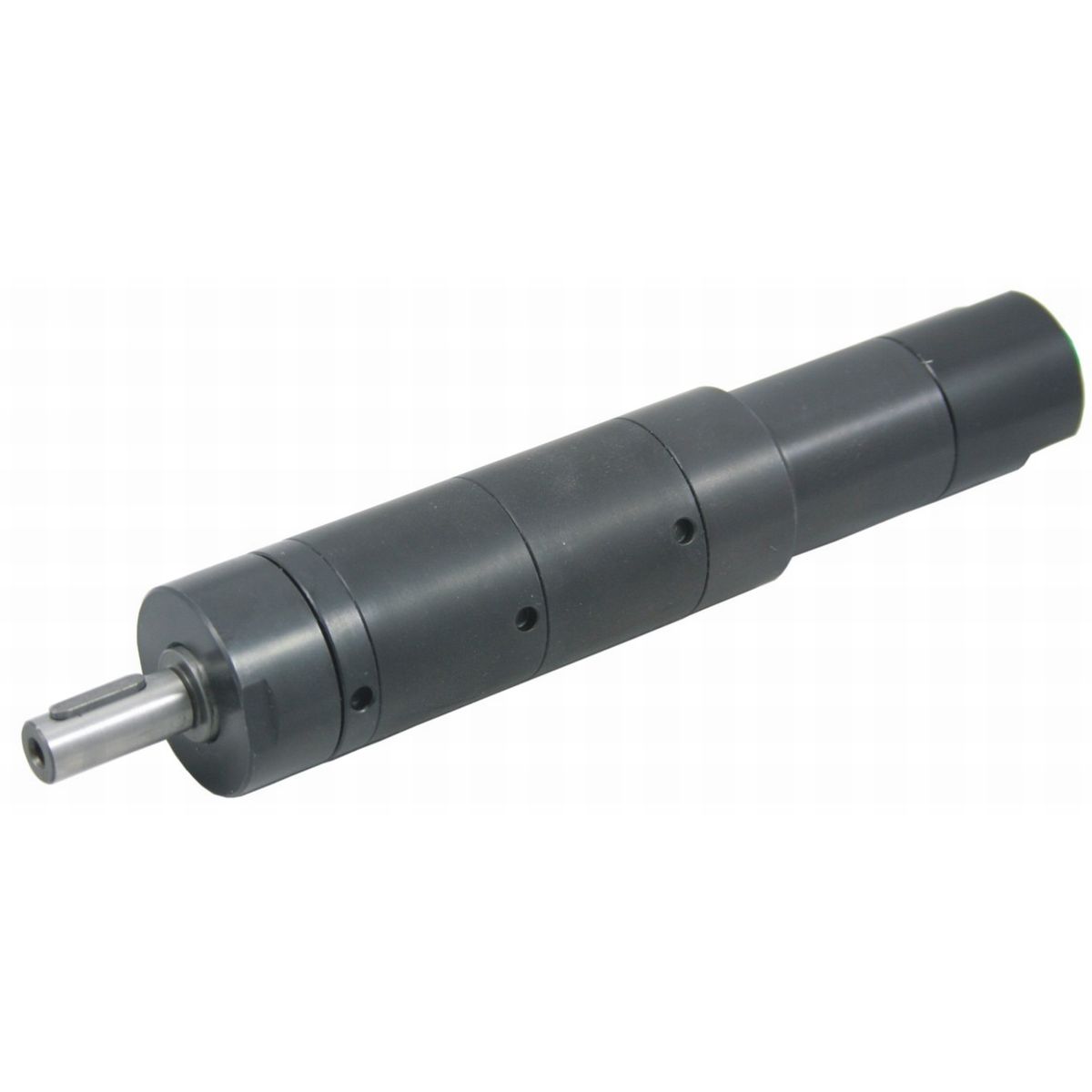

ME20 A/260
Air vane motor
| Power: | 0.20 kW |
| Free speed: | 2600 min-1 |
| Direction of rotation: | Right |
| Chuck: | Shaft-hub-connection Ø 10 h6 |
| Current: | Pneumatic |
- Article Number: 53142200
This air motor with vane drive is intended for installation in machines, e.g. as drive units on...more
ME20 A/260
Air vane motor
Air vane motor
Applications
This air motor with vane drive is intended for installation in machines, e.g. as drive units on conveyor belts, in machine tools, feed or entrainment devices, in the food or packaging industry, on production lines or for installation in hand-guided special machines.
Benefits
Compressed air vane motor ME20A/260 - power unit for professionals
Power: 200 WSpeed under Load: 2,600 min-1
Chuck: shaft-hub-connection Ø 10 h6
The 0.2 kW air motor can be operated oilfree.
The air vane motor has low-noise and low-vibration values, starts precisely and it runs in right drive.

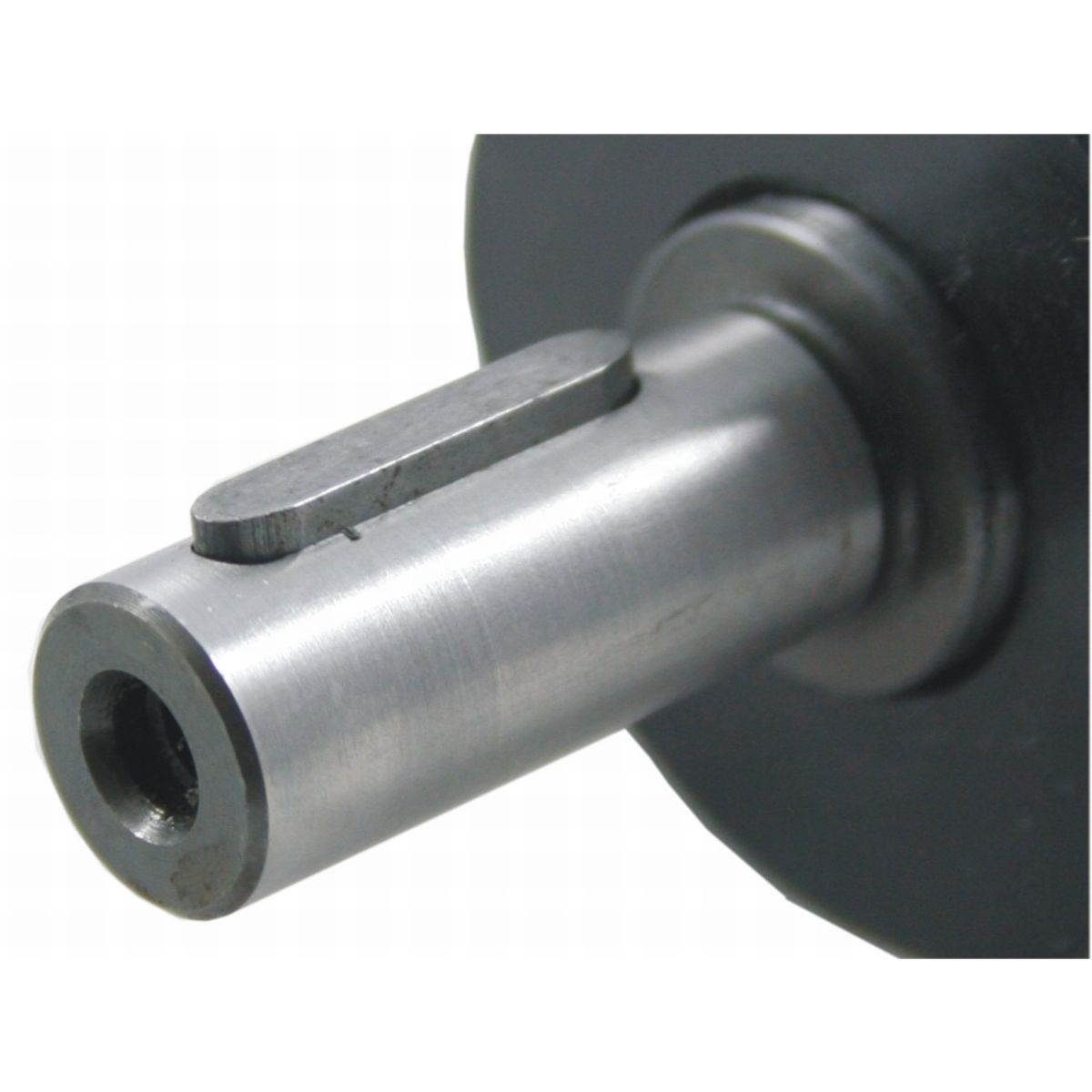

It is equipped with a shaft-hub connection according to DIN 6885 form A.
The durable air vane motor is low-maintenance, and wear parts can be changed fast and easily.
On request specific types are available: ceramic, stainless steel or motors with ATEX-certification; for high requirements to atmosphere, hygiene or safety.
Technical specifications
| Power: | 0.20 kW |
| Free speed: | 2600 min-1 |

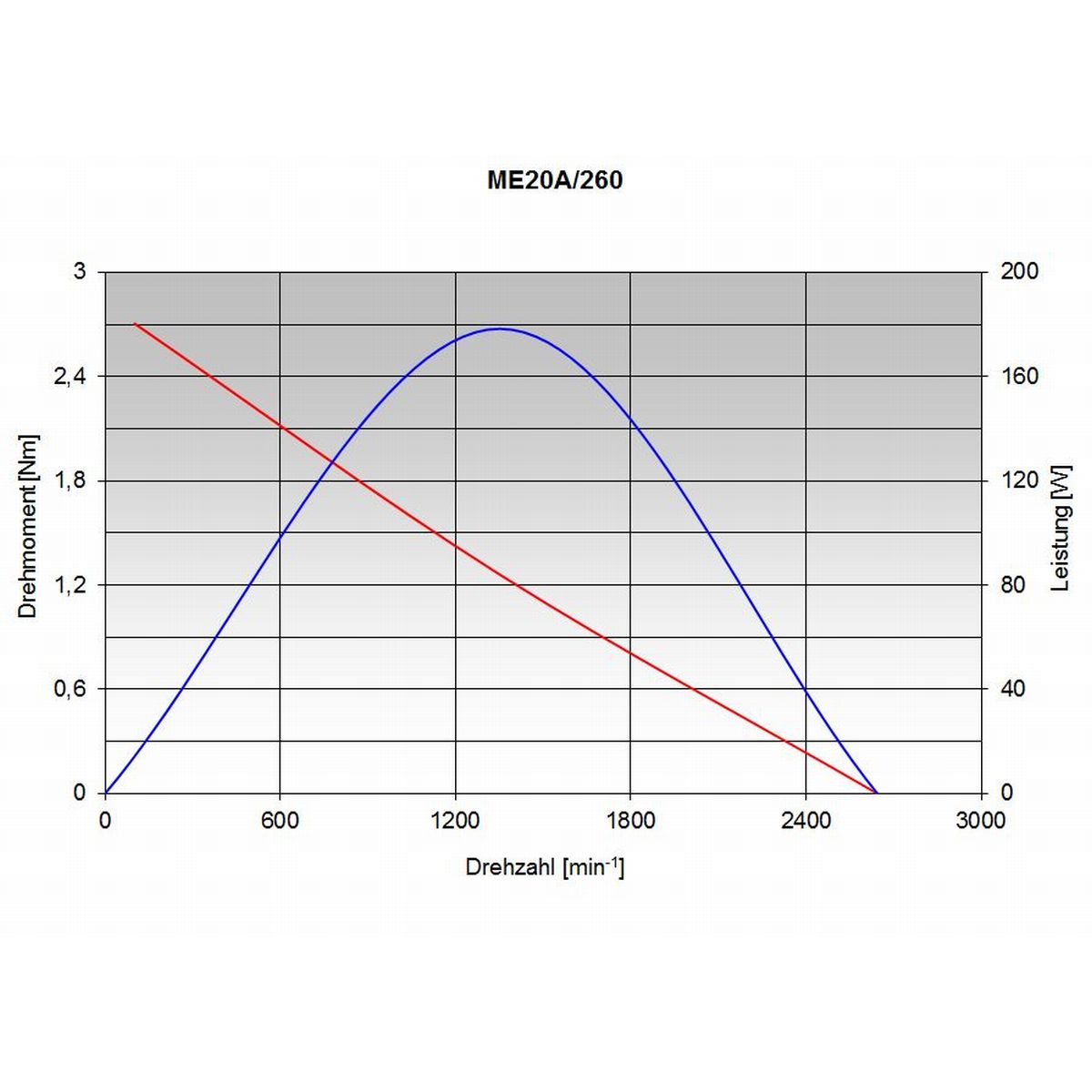

| Speed under Load: | 1350 min-1 |
| Starting Torque: | 2.10 Nm |
| Torque at max. Power: | 1.25 Nm |
| Direction of rotation: | Right |
| Chuck: | Shaft-hub-connection Ø 10 h6 |
| Construction form: | Straight |
| Weight: | 0.40 kg |
| Length: | 130 mm |
| Housing Ø: | 33.8 / 29 mm |
| Shaft length: | 25 mm |

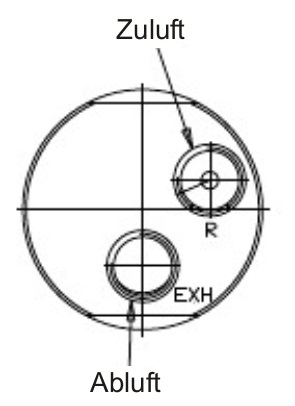

| Inlet air connection: | G 1/8" |
| Exhaust air connection: | G 1/8" |
| Recommended hose Ø: | 6 mm |
| Air consumption: | 5.3 l/s |
| Current: | Pneumatic |
| P_Max. Betriebsdruck: | 6.3 bar |
| Max. Working pressure: | 7.0 bar |
| Information: | Die Leistungsangaben beziehen sich auf einen empfohlenen Betriebsdruck von 6,3 bar (ISO 2787). |
The following Documents are available:
Included in delivery:
Motor
Options
Special motors and ATEX II 2 GD c T4 – T6 motors available on request.
